 Posted: Wed Feb 12, 2014 3:10 pm Post subject: Can you help identify the vehicle these parts are from pls |
 |
|

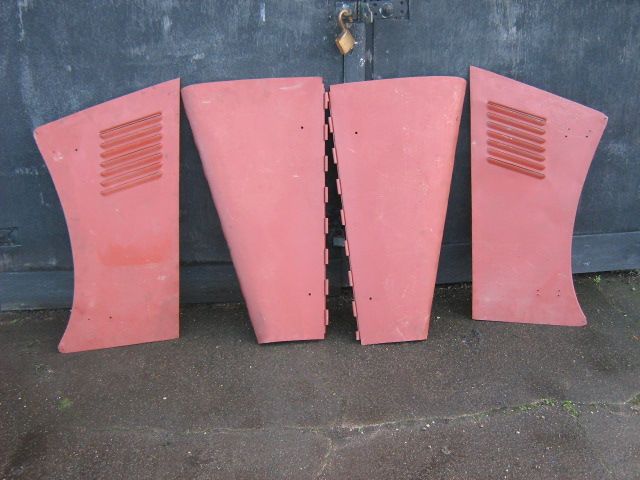

Can anyone help me identify what these parts are off please?
[img] [/img] |
|
| Back to top |
|
 |
Rick
Site Admin
Joined: 27 Apr 2005
Posts: 22786
Location: UK
|
|
| Back to top |
|
|
alanb
Joined: 10 Sep 2012
Posts: 517
Location: Berkshire.
|
| Posted: Wed Feb 12, 2014 6:58 pm Post subject: |
|
|
Looks like Morris 8, pre series, series 1, series 2. To me
_________________
old tourer
Morris 8 two seater |
|
| Back to top |
|
|
ukdave2002
Joined: 23 Nov 2007
Posts: 4237
Location: South Cheshire
|
| Posted: Wed Feb 12, 2014 7:38 pm Post subject: |
|
|
I'd agree with a Morris 8, and the bonnet catch is in the right place in relation to the vents.
Dave |
|
| Back to top |
|
|
Rosco663
Joined: 17 Dec 2012
Posts: 257
Location: South Australia
|
| Posted: Thu Feb 13, 2014 2:29 am Post subject: |
|
|
They certainly do look like Morris 8 bonnet leaves - but they are certainly different to my Series 1.
Where the two top sections come together, there are interlocking hinge sections - through which passes the brass hinge pin. Per the photo itwould appear that as these two sections come together the hinge would take on a full form with no gaps.
On mine there is also a 'rain gutter' as part of this assembly which hangs, below the hinged section, in the engine bay that directs water away from the top of the engine. This gutter is also held in place by the brass hinge pin - as such the second hinge 'loop' is missing from the top bonnet hinge at both ends, as it is replaced with the hinge loop on the 'rain gutter'.
This may be an Australian modification or possibly that the bonnet is from a Pre-Series or early Series 1. Unfortunately mine is 8500 odd kms away so can't post a photo right now
Cheers
_________________
Rosco |
|
| Back to top |
|
|
nadene8389
Joined: 10 Feb 2014
Posts: 2
|
| Posted: Thu Feb 13, 2014 2:30 am Post subject: |
|
|
| Thanks all that's really helpful. Much appreciated |
|
| Back to top |
|
|
Rosco663
Joined: 17 Dec 2012
Posts: 257
Location: South Australia
|
| Posted: Thu Feb 13, 2014 2:38 am Post subject: |
|
|
BTW welcome to the forum Nadene
_________________
Rosco |
|
| Back to top |
|
|
goneps
Joined: 18 Jun 2013
Posts: 601
Location: Auckland, New Zealand
|
| Posted: Thu Feb 13, 2014 3:54 am Post subject: |
|
|
| Rosco663 wrote: | | On mine there is also a 'rain gutter' as part of this assembly which hangs, below the hinged section, in the engine bay that directs water away from the top of the engine. This gutter is also held in place by the brass hinge pin - as such the second hinge 'loop' is missing from the top bonnet hinge at both ends, as it is replaced with the hinge loop on the 'rain gutter'. |
The example shown would be from a very early 35 (pre-Series) model. Early cars did not have the drip channel, and unsurprisingly it was found in service that this caused ignition problems in wet weather (not exactly an unusual occurrence in Britain).
As far as I know the channel was added retrospectively. Certainly the Series I Parts List makes no mention of earlier parts, but no doubt a '35 Parts List would show different numbers. A similar case arose recently on the Morris Register (GB) forum in respect of other items superseded by a better design, the earlier parts being listed in the '35 Parts List but excluded from the Series I List. It's possible that the parts shown were discarded when the car's bonnet was replaced with the later improved design.
Richard |
|
